CAD, Vector, PNG - Switches, Sockets & Wall Controls

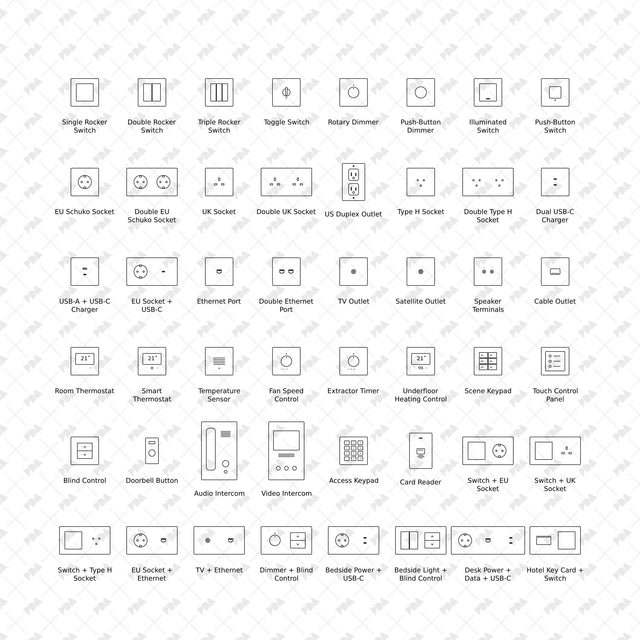

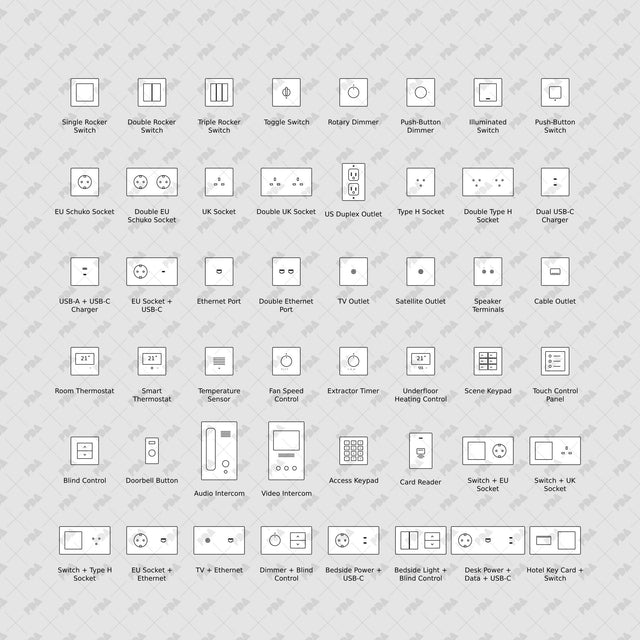

Description: A collection of 48 wall switches, sockets and controls in front elevation, drawn with clean, minimal linework for architectural interiors.
Designed for architects and interior designers preparing wall elevations, room layouts and presentation boards.

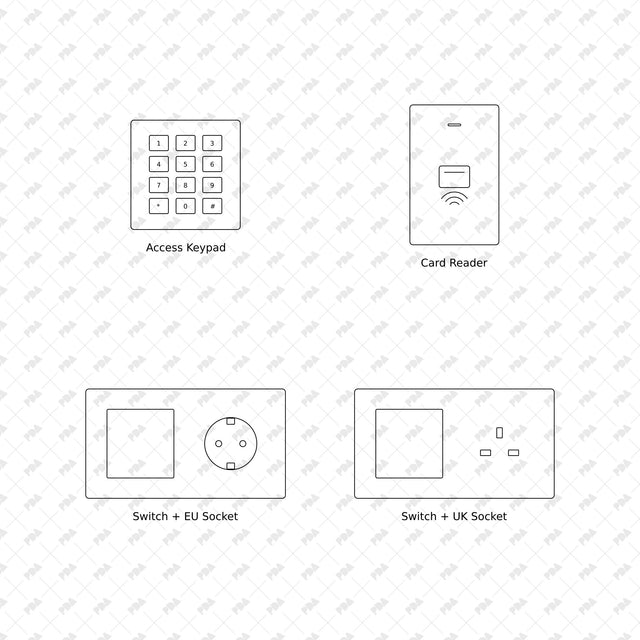

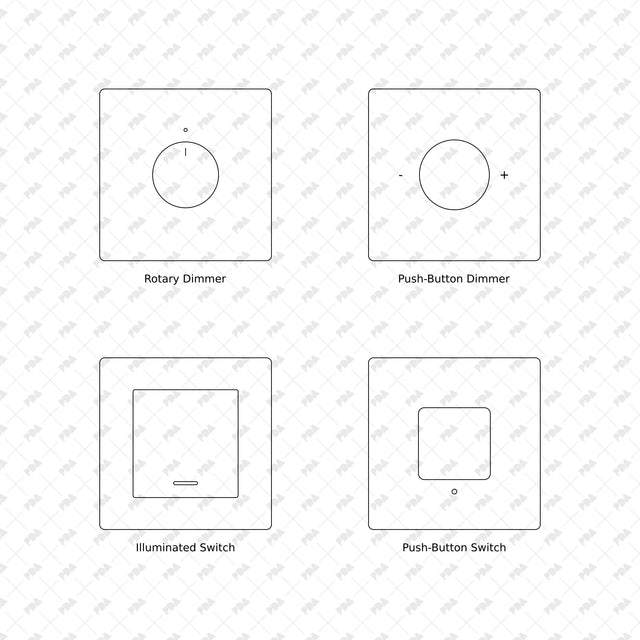

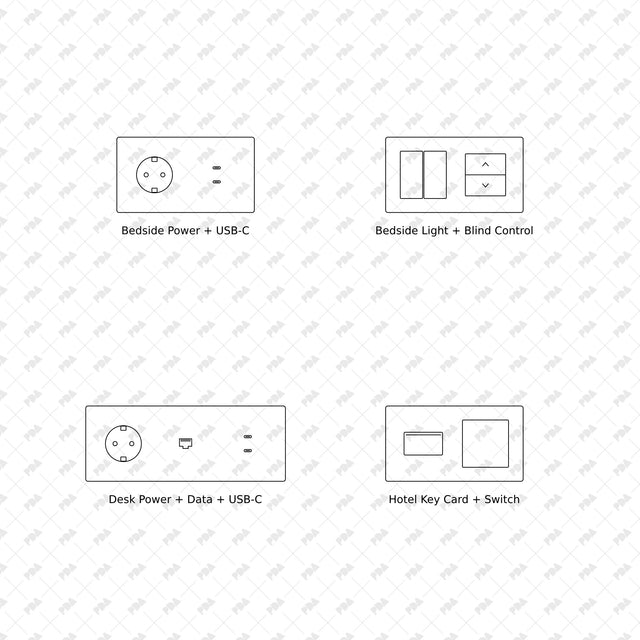

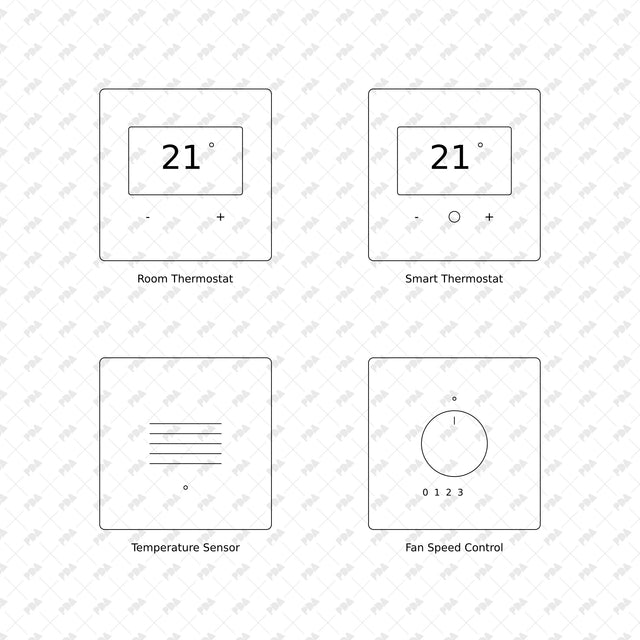

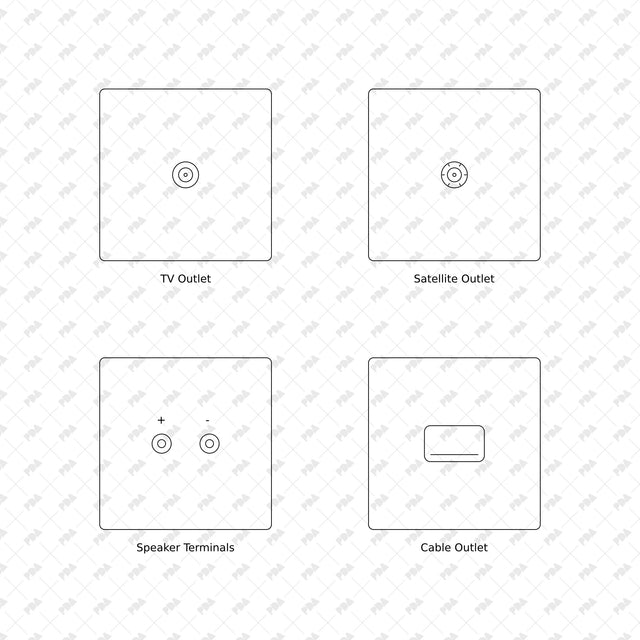

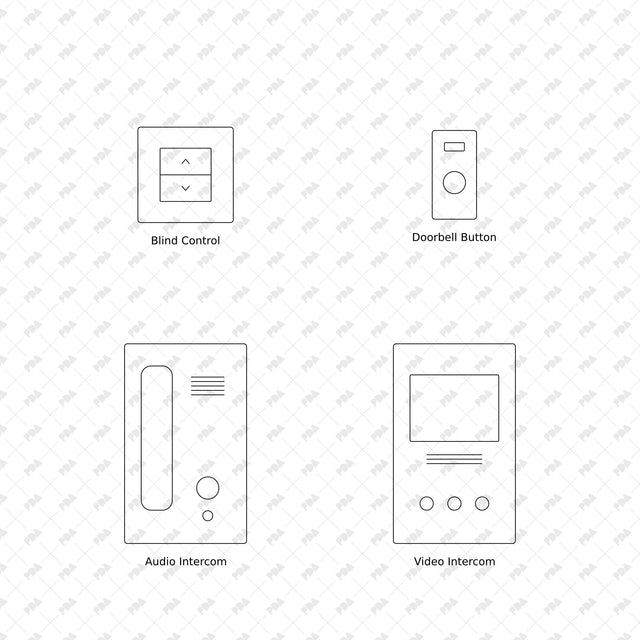

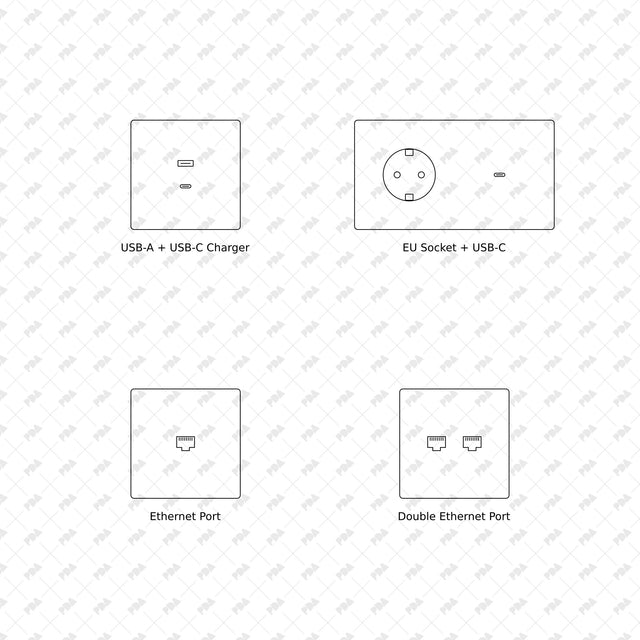

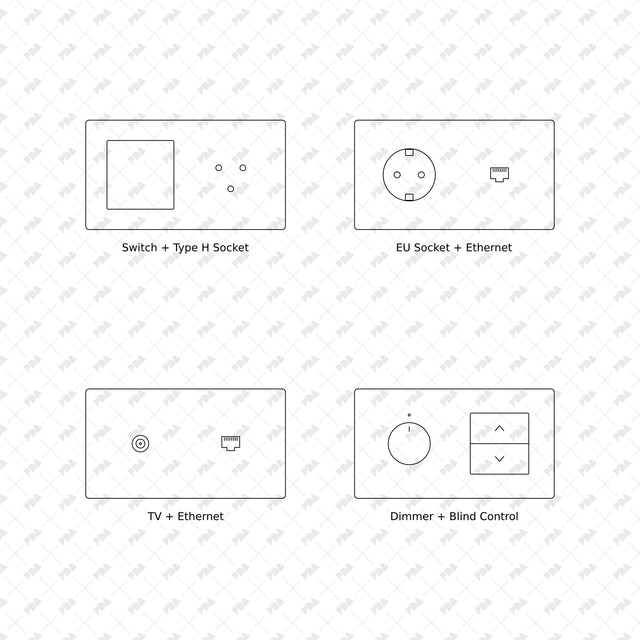

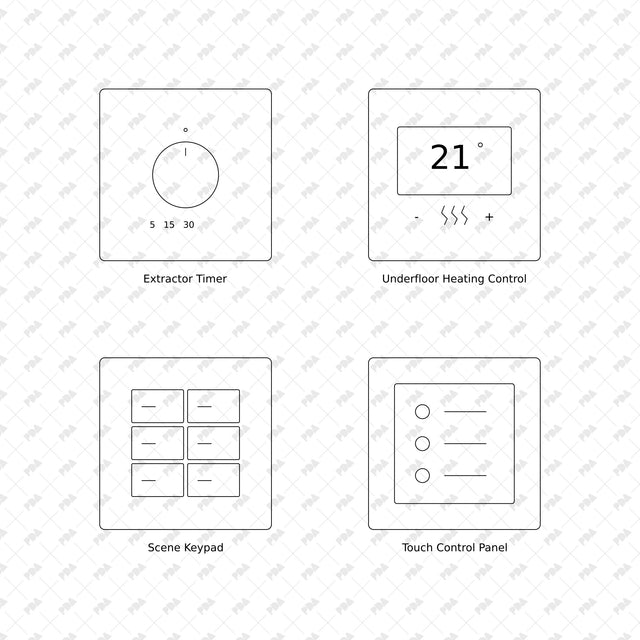

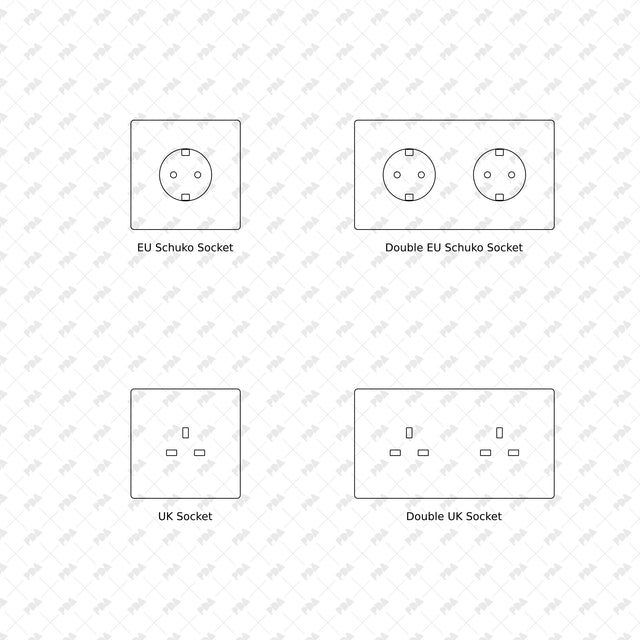

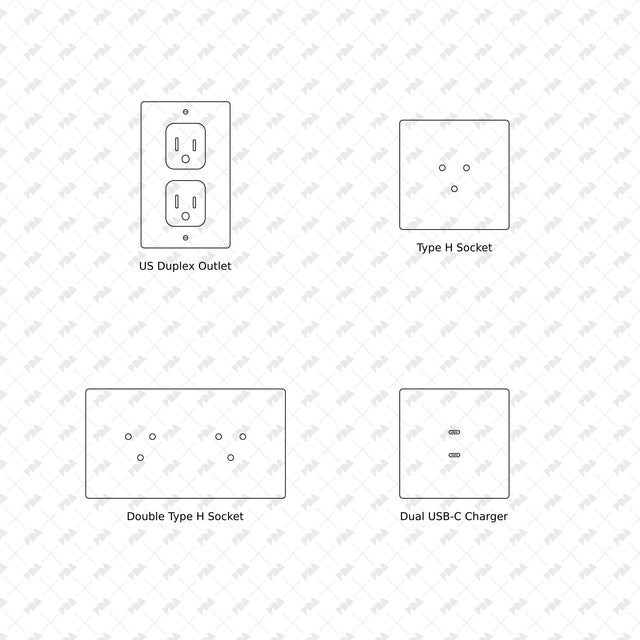

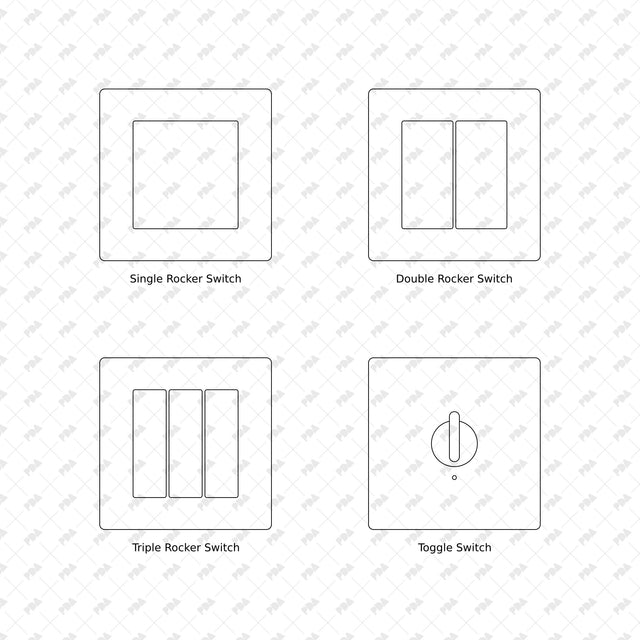

Included Elements: 8 switches and dimmers, 10 power and charging outlets, 6 data and media outlets, 6 climate and ventilation controls, 8 smart and access controls, and 10 combined wall plates.
Use Cases: Interior elevations and joinery coordination; residential, workplace and hospitality presentations; bedside, desk and entrance wall-plate arrangements.
Why This Set:
Consistent front elevations with descriptive catalogue labels
48 editable CAD blocks and separately grouped vector items and labels
White object surfaces with transparent PNG surroundings
File Format: Illustrator AI and SVG catalogues, a DXF catalogue with 48 blocks in centimeters, and 48 individual transparent PNGs at 300 dpi.
